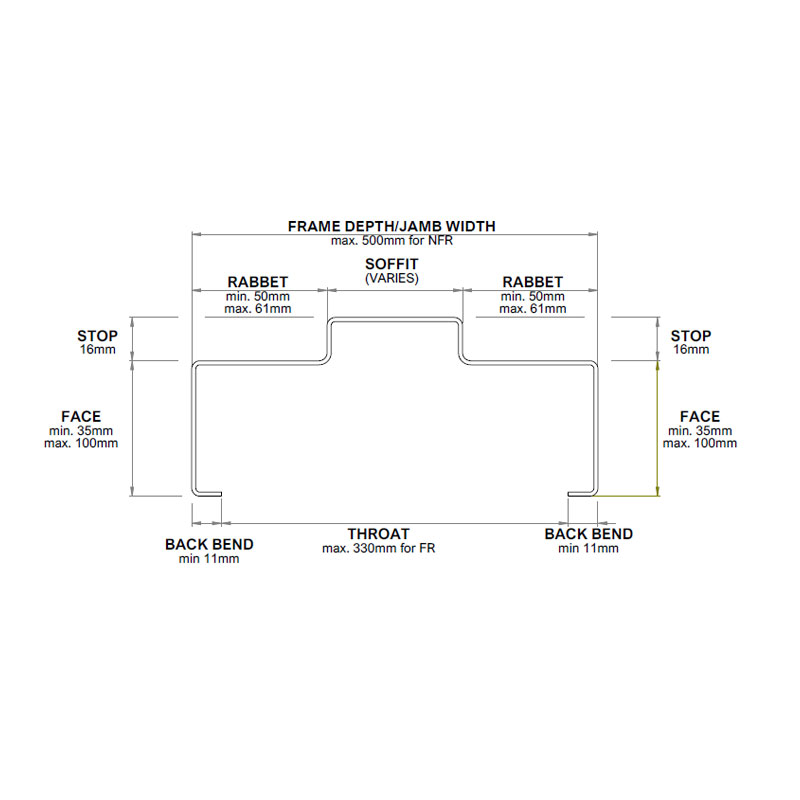

DOUBLE RABBET FRAME

We offer wide range of Frame Profiles, and can be customized as required. A frame which fits against a wall rather than wrap around it.
Recommended for Large Thick. Walls specially Masonry Walls.
AVAILABLE WITH 4 FRAME PROFILES:
Jamb/Wall Relation: Flush on the Wall.
Dim. Limitations:
Min. Frame Depth = 135mm
Max. Frame Depth = 500mm
Max. Throat Opening (for Fire Rated Doors Only)= 330mm Min.
Face = 35mm
Max. Face = 100mm
The 2 Rabbets can be unequal sizes within the above limitations.
Available Materials:
Colled Rolled / G60 / G90 (1mm, 1.2mm, 1.5mm, 2mm & 3mm)
